Stallion “HI-LINER”

The “Hi-Liner” is designed for the professional. The fully sealed, lockable, front tack box provides security and protection for your saddles and tack. The interior allows room to move and the build assures a safe, smooth
ride. All this combined with the superior quality finish guarantee a float you will be proud to own.

Inner Dimensions
Length 11 feet
Height 7 feet 2 inches
Width S feet 2 inches
Tare Weight 1050kg GVM 2000kg

HI-LINER

• Heavy duty double floor
• Full interior padding
• Spare wheel with cover
• Aluminium stone guards
• Interior light
• Second access door
• Fibreglass front tack box

• Removable and adjustable curved chest bar
• Galvanized frame
• Kick panels
• 6 feet 5 inches horse stall
• Chequer plate on draw bar
• Complete aluminium side steps

• Extra length
• Tack box light
• Galvanized inner steel walls
• Swing out rump bars
• Choice of colour, stripes and scrolls
• Pop up vent on roof
• Swing up jockey wheel

• 5 New light truck tyres on white mags
• Floor and tail gate fully rubbered
• Gas strut tail gate
• Mud flaps
• Removable head divider
• Side sliding windows
• Quarter light windows
• Grease nipples on tail gate hinges

Contact us today!

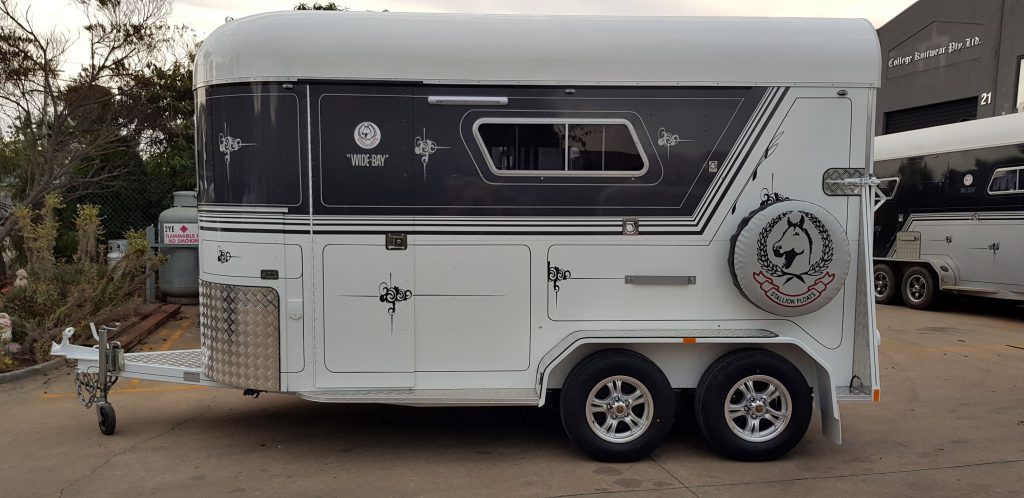

Stallion “WIDE BAY”

The “Wide Bay” is the ultimate straight load float. With additional width and length, this float is ideally suited to larger horses. Every aspect of this float ensures the safest ride and comfort for the biggest horse.

Inner Dimensions
Length 11 feet 6 inches
Height 7 feet 2 inches
Width 6 feet 3 inches
Tare Weight 1180kg GVM 3000kg

WIDE BAY

• Full interior padding
• Roller rocker suspension
• Both axles braked
• Brake A Way brake system
• Spare wheel with cover
• Aluminium stone guards
• Interior light

• Second access door
• Removable and adjustable curved chest bar
• Galvanized frame
• Kick panels
• 6 feet 5 inches horse stall
• Chequer plate on draw bar

• Complete aluminium side steps
• Extra length
• Galvanized inner steel walls
• Swing out rump bars
• Choice of colour, stripes and scrolls
• 2 Pop up vents on roof
• Swing up jockey wheel

• 5 New light truck tyres on white mags
• Floor and tail gate fully rubbered
• Gas strut tail gate
• Mud flaps
• Removable head divider
• Side sliding windows
• Grease nipples on tail gate hinges

Contact us today!

Stallion “ANGLE DELUXE”

As horsemanship knowledge increased over the years the concept of Angle loading has become more accepted. Many believe that horses travel more comfortably at an angle. With this evolution Stallion Floats introduced the Angle Deluxe range. These floats, with their superior finish, features and fit out, reassure and maximise the comfort of your horses while travelling. The Angle Deluxe range is available in both head left and head right configuration.

2 Horse Angle Inner Dimensions
Length 11 feet 6 inches
Height 7 feet 2 inches
Width 6 feet 2 inches
Weight 1250kg

3 Horse Angle Inner Dimensions
Length 14 feet 6 inches
Height 7 feet 2 inches
Width 6 feet 2 inches
Weight 1500kg

ANGLE DELUXE

• Heavy duty double floor
• Full interior padding
• Spare wheel with cover
• Aluminium stone guards
• Complete aluminium side steps
• Hinged last divider
• Electric brakes on both axles

• Galvanized frame
• Kick panels
• Choice of colour, stripes and scrolls
• Chequer plate on draw bar
• 2 Pop up vents on roof
• Gas lift up or barn doors
• Breakaway unit

• Galvanized inner steel walls
• Mud flaps
• Side sliding windows
• 2Twin fluorescent lights
• 5 New light truck tyres on white mags
• Grease nipples on tail gate hinges
• Floor and tail gate fully rubbered

• Gas strut tail gate
• Swing up jockey wheel
• Head dividers
• Rubber lined walls

Contact us today!

Stallion Floats Expander

The revolution has arrived!

With all the standard safety features of a Stallion Float, the Expander gives you the best of both worlds. Including seating for 6, sleeping for 4, the comfort and features of a caravan and a double bed, you will be in luxury at every event.

Contact us today!

Stallion “CONSTRUCTION”

Why buy a Stallion Float?

Stallion Floats pride themselves on the quality and finish of every float we make. We believe it’s the “little things” that make us the top float available. Some of these “little things” are:

All steel tube used in construction is Australian made Algal tube. This means that the tube is actually rolled out of galvanized material, not dipped after construction, providing the highest possible rush protection.

All welds on the frame and chassis are ground, cleaned and primed before being covered.

The complete frame and chassis are inspected, and any weld spatter removed, before priming and painting, to ensure the highest quality finish.

All rivets used in the manufacture of the body are sealed rivets. This ensures that no moisture can enter the frame
from the rivets.

All non welded joints are sealed with a polyurethane sealant to protect against moisture and water intrusion.

Our double strength floor is made from 25mm kiln dried, Fl 7 (construction) grade hardwood base with 17mm F7 grade waterproof form ply top and covered with 8mm of heavy duty rubber matting. All joins in the rubber are sealed with polyurethane sealant and the floor is then sealed with a waterproof coating.

All exterior paint is automotive 2 pack enamel that is baked. This is the same process as your car.

We only use quality electric brake components that meet all Australian standards

All wheel rims are load rated to Australian Standards and fitted with new light truck tyres.

Contact us today!
